View alert details of equipment

View alert details of equipment

Aim: To view a summary of the temperature monitoring status of Equipment currently monitored with AnnoLogs.

  1. Log into the BrightSentinel mobile app.
  2. Tap on Alerts from the menu.

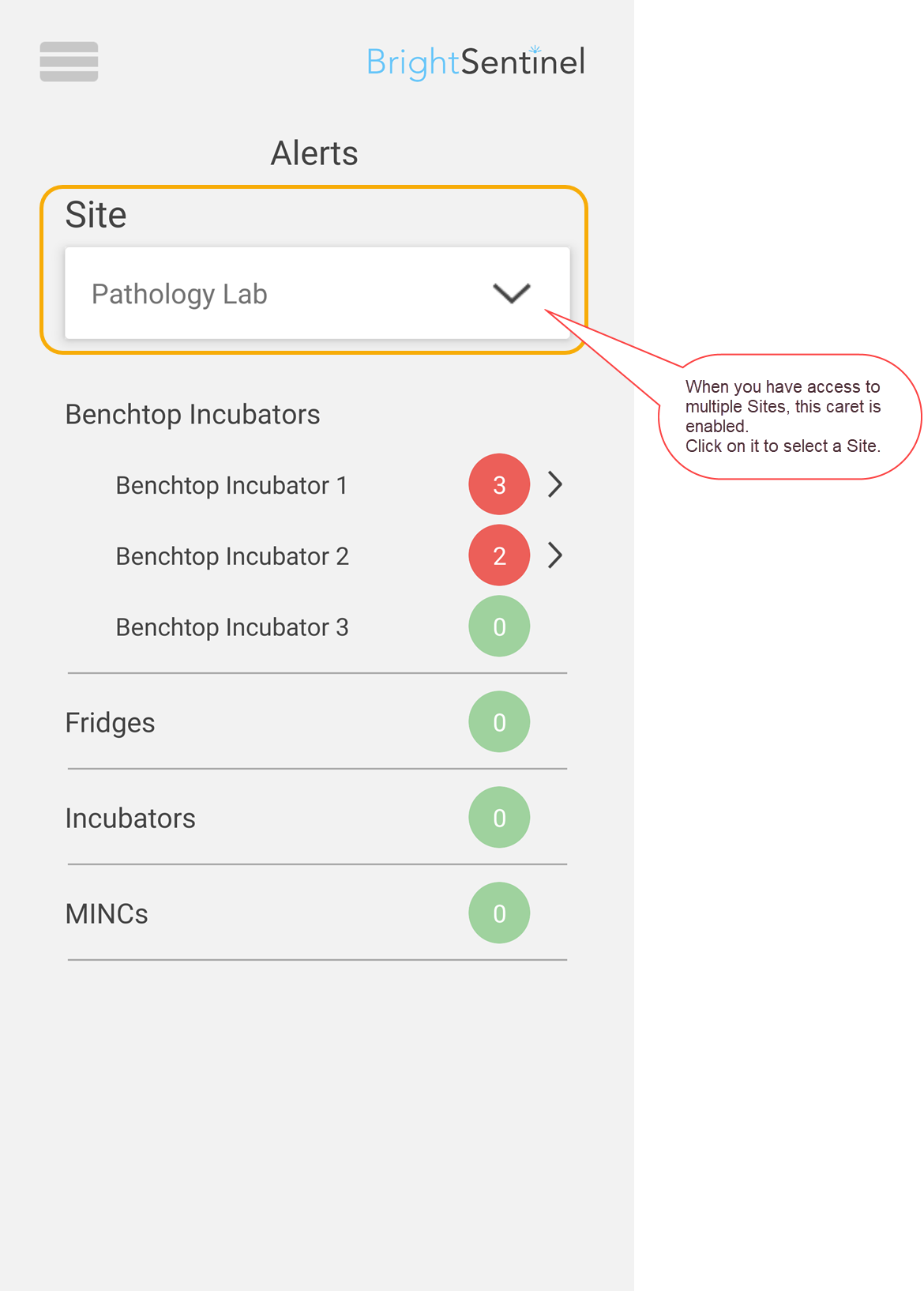

Select the Site

Depending on your role in the BrightSentinel system, you may have access to several Sites in your grouped account. Otherwise, you have access only to your designated Site.
  1. Click on the caret to expand the drop-down menu.
  2. Select the applicable Site name.
Only Account Administrators and Site Administrators are able to access multiple Sites within their account group.



  1. A list of each active Equipment Group for the Site is presented.
  2. When a high or low temperature excursion has occured, the Equipment Group expands to highlight the individual Equipment and the number of alerts that were triggered and are not yet acknowledged.
  3. Click on the caret next to the alert of an Equipment to view more details.

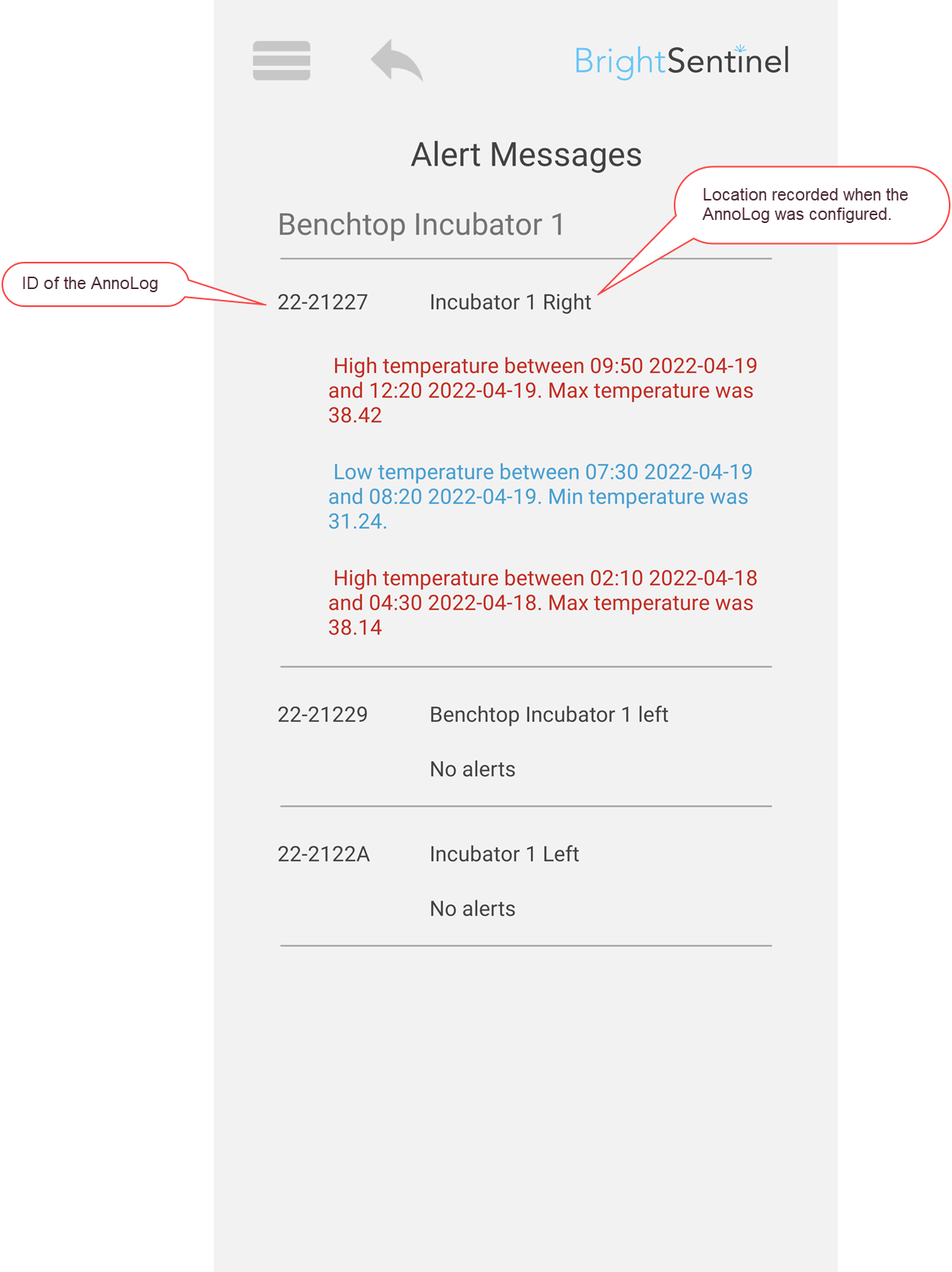

  1. The status of all the active (still running) AnnoLogs for this Equipment is presented.
  2. Temperature excursions are highlighted (in red for upper and blue for lower excursions) to indicate a breach of the acceptable temperature range set for the Equipment. Also, duration and the maximum/minimum temperature recorded are shown.
Once an alert is acknowledged in the BrightSentinel Cloud, it is no longer visible on the mobile app.

Once a logger's mission is ended, all unacknowledged alerts are automatically acknowledged by the system and are no longer visible on the mobile app.
  1. Click on the arrow icon, at the top of the page, to revert back to the previous page.
  2. Click on the burger icon, at the top of the page, to go back to the Home page.
All done!
